placename:- Artengill Viaduct
other name:- Arten Gill Viaduct
site name:- Settle and Carlisle Railway
site name:- Artengill Beck
locality:- Arten Gill
locality:- Dentdale
parish Dent parish, once in Yorkshire
county:- Cumbria
railway viaduct; viaduct
coordinates:- SD77658580, SD77598599
10Km square:- SD78

1Km square SD7785

photograph

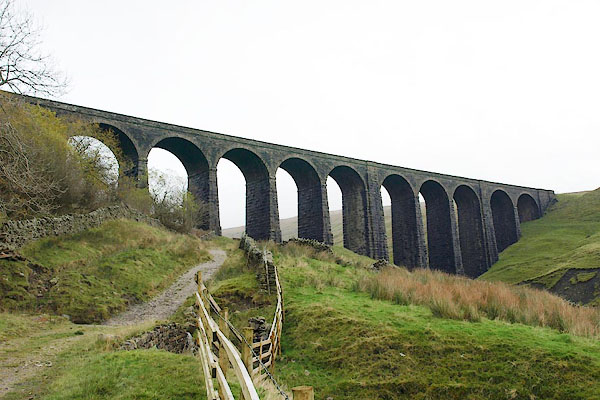

Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- 9.1.2009
photograph

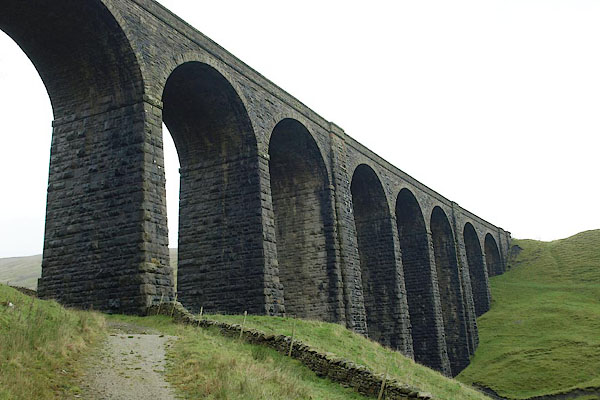

Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- 13.11.2009

database:- Listed Buildings 2010

Listed Buildings 2010

courtesy of English Heritage
ARTENGILL VIADUCT / / / DENT / SOUTH LAKELAND / CUMBRIA / II / 484249 / SD7761785903
courtesy of English Heritage
Railway viaduct carrying Settle to Carlisle railway line over Artengill Beck. c1869-75, for the Midland Railway Company; Chief Engineer John Crossley, resident engineer J.Underwood. Rock-faced sandstone in massive blocks, with brick soffits to the arches. Straight line on almost north-south axis. Eleven round-headed arches on battered rectangular piers, those to north and south of the 7th, 8th and 9th (which span the deepest part of the valley) broader than the others and with tapered pilasters; short cavetto-moulded imposts at the springing of the arches, rusticated voussoirs, a moulded string course and parapets with rounded coping. Matches Dent Head Viaduct (qv) approx. 1200m to south. A striking feature of the landscape.

placename:- Artengill Viaduct
district:- South Lakeland
listed building
coordinates:- SD77618590
date:- 2010
period:- 2010s

photographs
tiny photograph,
button to large Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- 13.11.2009
tiny photograph,
button to large Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- 13.11.2009
tiny photograph,

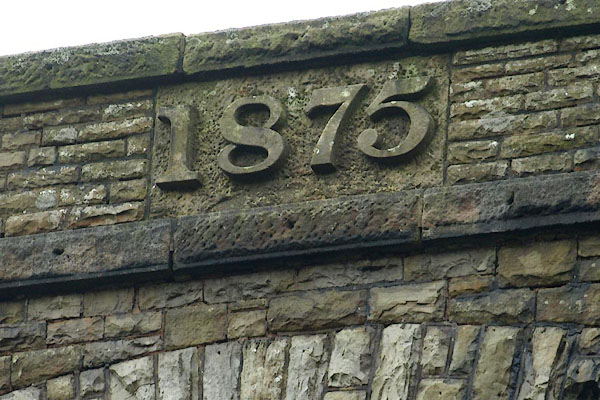

button to large Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- The date, centre of the parapet:- -- '1875' -- 13.11.2009
tiny photograph,

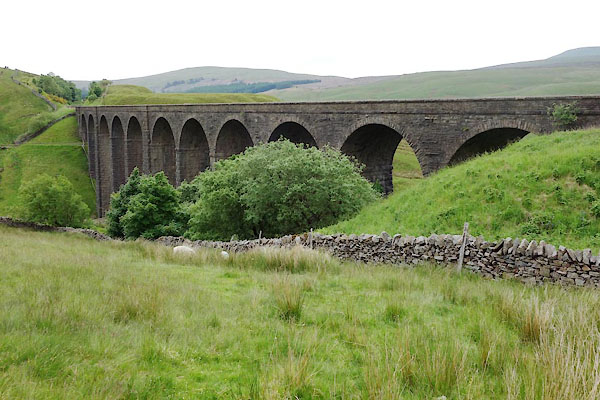

button to large Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- 25.6.2013
tiny photograph,

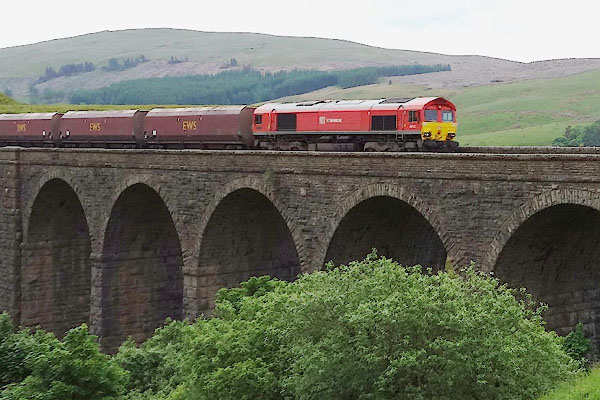

button to large Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- EWS goods train. -- 25.6.2013
tiny photograph,

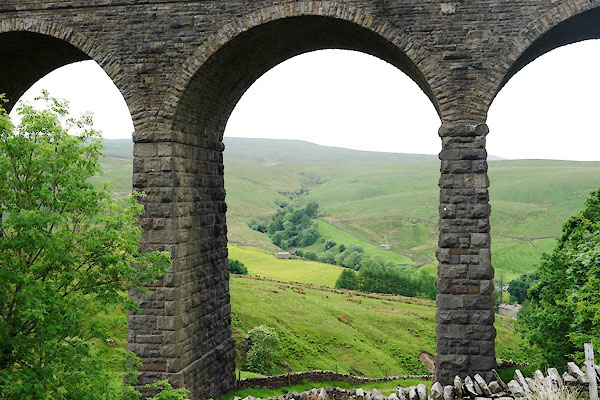

button to large Artengill Viaduct -- Settle and Carlisle Railway -- Artengill Beck -- Arten Gill -- Dentdale -- Dent -- Cumbria / -- Slender piers. -- 25.6.2013

hearsay The foundations of the piers go down 50 feet to find bedrock.
11 arches, 117 feet high, 220 yards long.
Built 1871-75 using 'Dent Marble' limestone.
